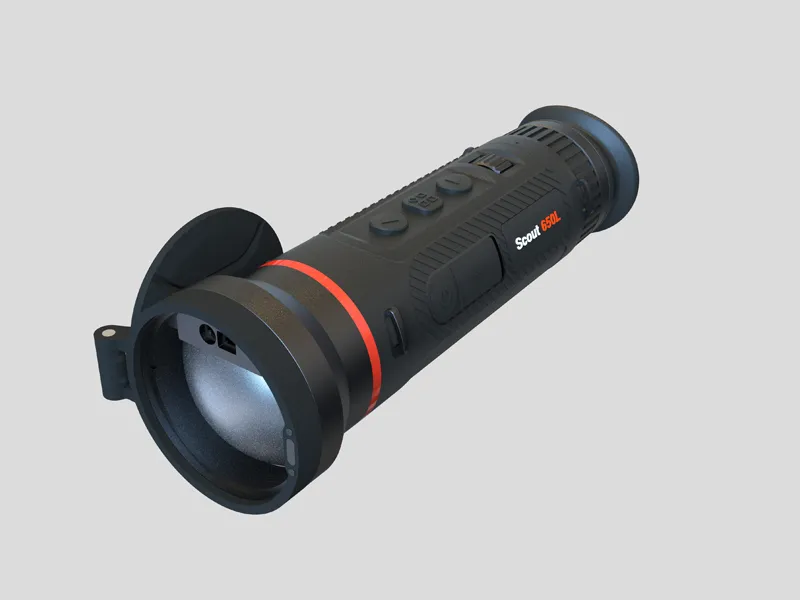

Scout Series Thermal Monocular combines high-performance thermal imaging, integrated laser ranging, and handheld portability in a field-ready observation platform. Featuring a 640 × 512 / 12μm thermal sensor, NETD ≤25mK, a 50mm F0.9 objective lens, and a human detection range of up to 2600m, it delivers excellent thermal clarity and long-range detection capability for demanding outdoor applications.
With a 1024 × 768 AMOLED display, built-in 905nm laser rangefinder, 64GB internal storage, Wi-Fi connectivity, and up to 7.5 hours of battery life, Scout Series provides a complete thermal observation solution for users who value mobility, precision, and reliable field performance.
Vulcan’s proprietary AI-powered image processing algorithm adapts intelligently to diverse scenarios and environments, delivering stable and consistent image quality without manual intervention. Whether used for outdoor hunting, under strong light, backlighting, or changing conditions, it dynamically optimizes every scene to ensure complete, vivid, and true-to-life visuals. By effectively reducing environmental temperature noise, the algorithm enhances contrast, preserves fine details, and provides clearer, more reliable images in every shot.
With Vulcan’s breakthrough NETD of less than 15mK, the detector reaches a new level of thermal sensitivity, capturing even the slightest temperature differences with stable performance. This ultra-low NETD enables exceptionally clear, smooth, and detailed thermal imagery, enhancing perception of the surrounding environment. Hunters can easily distinguish an animal’s outline, anatomy, and unique behavioral traits, supporting precise trophy recognition and helping them make more confident and accurate hunting decisions in the field.
With a high 50Hz refresh rate, the detector delivers smoother, more fluid thermal imagery with faster response times. This upgrade ensures clearer visuals and more stable tracking when observing fast-moving prey. Even during rapid movement, targets remain continuous, natural, and detailed, helping hunters maintain focus and follow every motion with ease.
Powered by Vulcan’s super-resolution algorithm, the device delivers enhanced clarity during digital magnification, maintaining sharp and ultra-detailed images without quality loss. Combining base magnification with continuous digital zoom up to 4x, the algorithm sharpens key details such as outlines, subtle movements, and size differences, helping users identify targets more quickly and precisely.
Vulcan’s algorithm intelligently reduces shutter frequency by continuously learning from different grey-level backgrounds, minimizing image freezing without compromising image quality. This dynamic process adapts to changing environments, reducing calibration pauses and ensuring stable, consistent visuals. With fewer interruptions and smoother observation, users can stay focused and never miss a critical moment in the field.
The Scout Series boasts an impressive detection range of up to 2600m, enabling clear identification of distant targets and giving hunters a significant advantage in long-range hunting and precision targeting.
The Scout Series features an ergonomic focus wheel design that places smooth focus control right at your fingertips. Users can adjust focus quickly and precisely with one hand, even while wearing gloves, without changing grip or interrupting observation. With only slight finger movements, they can quickly and smoothly obtain a clear image, ensuring stable, comfortable, and convenient operation during long outdoor hunting and exploration.

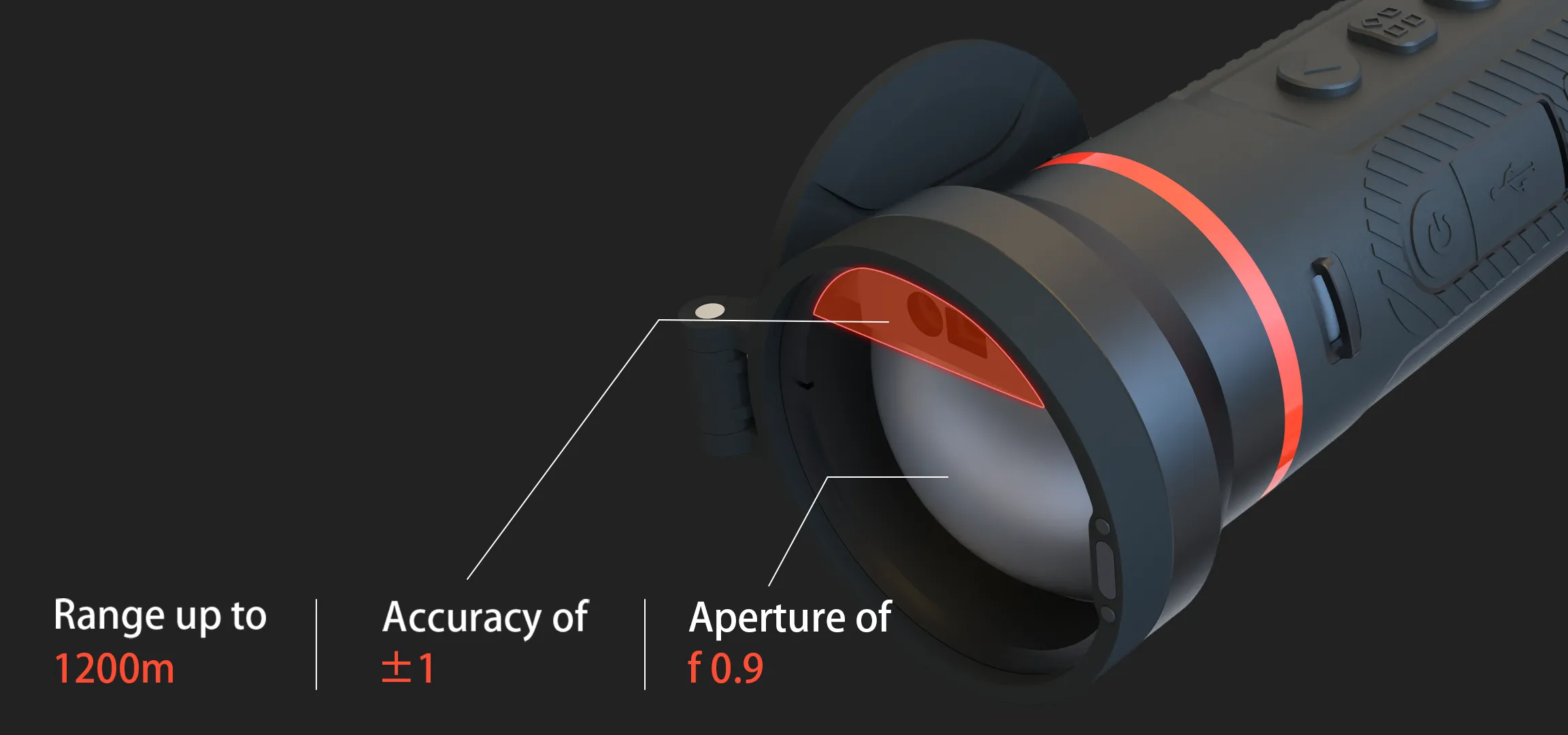

The Scout Series features an innovative built-in lens laser rangefinder integrated into its 50mm/F0.9 objective lens, delivering up to 1,200m ranging with ±1m accuracy and true optical axis alignment. This advanced design ensures precise distance measurement while preserving a clean, traditional scope profile. With high-transmittance optics, it provides brighter, clearer images and a refined appearance.

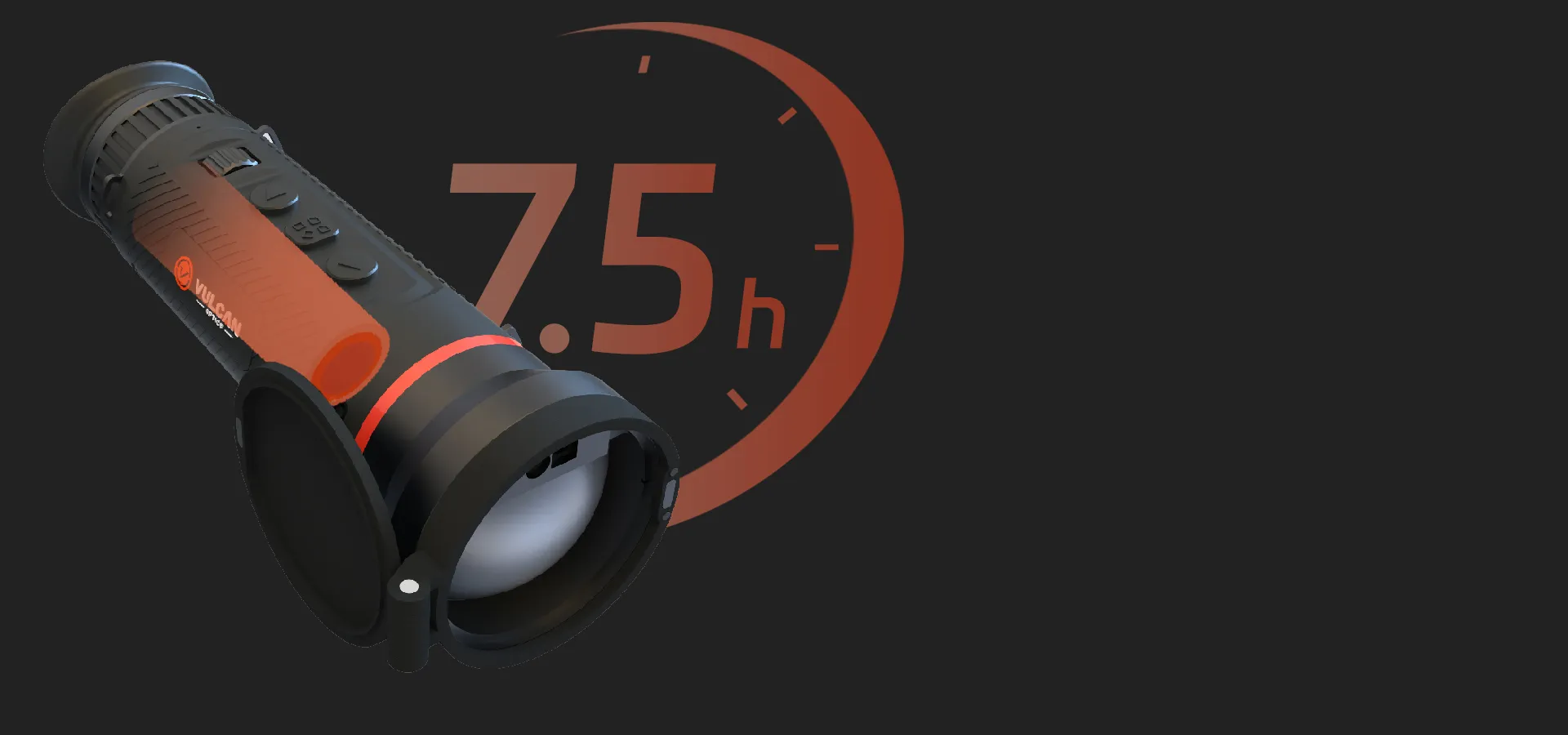

The Scout Series adopts a low-power design powered by a single 21700 battery, delivering up to 7.5 hours of continuous runtime. This efficient power solution provides dependable performance for extended outdoor observation, hunting, and exploration, helping users stay focused in the field and ensuring they never miss a critical moment.
| Item category | Scout 650L |
| Thermal Module | |
| Image Sensor | UFPA (VOx) |
| Resolution | 640×512 |
| Pixel Pitch | 12µm |
| Frame Rate | 50Hz |
| NETD | ≤15mk |
| Spectral Range | 8-14µm |
| Optical Parameter | |
| Focal length / Aperture | 50mm; F0.9 |
| Field of View | 8.7°×7.0° |
| Base Magnification | 2.7X |
| Focusing Mode | Focus Roller |
| Eye Relief | 15mm |
| Exit Pupil | 6mm |
| Diopter | +5D to -5D |
| Detection Range | 2600m (Human; 3pixels) |
| Recognition Range | 640m (Human; 12pixels) |
| Image Display | |
| Screen | AMOLED, 0.39 inch |
| Resolution | 1024×768 |
| Screen Brightness Adjustment | Support |
| Brightness Adjustment | Support |
| Contrast Adjustment | Support |
| Image Enhancement | Support |
| Scene Mode | City;Plain;Forest |
| Display Mode | Circle;Box |
| Color Palette | White Hot/Black Hot/Red Hot/Fusion/Golden Hot etc. |
| Digital Zoom | 1×; 2×; 4× |
| Power Supply | |
| Battery type & Number | 1 replaceable 21700 Lithium battery |
| External Power Supply | DC 5V (USB Type-C) |
| Battery Operating Time | ≥7.5h (25℃) |
| System | |
| Record Video | Support |
| Capture Snapshot | Support |
| Audio Recording | Support |
| Local Album | Support |
| Recoil Activation Recording | - |
| Picture in Picture | Support |
| Hot Track | Support |
| Zeroing Adaptation Mode | - |
| Screen Adaptation | Support |
| Standby Mode | Support |
| Ballistic Calculation | - |
| Ballistic Calibration | - |
| Distance Measurement | Support |
| Zeroing Profiles | - |
| Reticle Pattern | - |
| Reticle Pattern | - |
| Aim Point Type | - |
| Aim Point Colour | - |
| BC Aim Point Type | - |
| BC Aim Point Colour | - |
| Ranging Cursor Type | 3 |
| Ranging Cursor Colour | 3 |
| Peripheral | |
| Electronic Compass | Support |
| Attitude Sensor | Support |
| WIFI /APP | Support; 2.4G |
| Storage | Built-in EMMC (64GB) |
| Laser Rangefinder | 905nm;Class 1 Laser Safety |
| Ranging Distance & Accuracy | 1.2 Km*; ±1m |
| General | |
| Data Transmission Interface | USB (Type-C) |
| Protection Level | IP67 |
| Operating Temperature | -20°C to +50°C |
| Max. Recoil | - |
| Weight(without battery) | ≤715g |
| Dimension | 218×82×70(mm) |
* When measuring large, highly reflective targets (such as buildings with a reflectivity of 70%) in conditions without direct sunlight, the laser ranging module can achieve this range.
